How Stonemasons Install a Large Shinzen-Type Stone Lantern at a Japanese Shrine
How Japanese Stonemasons Install a Large Shinzen-Type Stone Lantern at a Shrine
A Japanese stonework company that supplies stone lanterns to Japanstones.shop provided us with photographs showing a matching pair of large Shinzen-type stone lanterns being installed at a shrine in Japan.
This is a valuable record of large stone lanterns, made in a Japanese stone workshop, being assembled along a shrine approach by professional stonemasons.
Japanstones.shop did not perform the installation shown in this article. This is an actual project completed by one of our stone lantern suppliers, and the following explanation is based on photographs provided by that company.
Each stone lantern consists of several separate stone components, including multiple pedestal stones, a shaft, a middle platform, a fire box, a roof, and a decorative finial.
For this project, the large stone lanterns were transported as separate stone components. The individual pieces were delivered to the site and assembled from the bottom upward.
Each component is extremely heavy, so the installation requires a truck-mounted crane, lifting equipment, a level, mortar, and other professional tools. The stonemasons must carefully control the position, alignment, level, and front-facing direction of every piece.
The following photographs show how professional Japanese stonemasons installed this matching pair of large Shinzen-type stone lanterns at a Japanese shrine.
- Checking the installation positions and concrete foundations
- Setting the lowest pedestal stone in place
- Stacking the remaining pedestal stones
- Installing the shaft with the “Offering of Light” inscription
- Installing the middle platform, fire box, and roof
- Attaching the decorative finial
- Making final adjustments to the level, alignment, and direction
1. Checking the Installation Positions and Concrete Foundations
The first step is to inspect the installation positions and the condition of the concrete foundations.
A stable foundation is essential for supporting the weight of a large stone lantern over many years. The installers must consider not only the size and strength of the foundation, but also its position in relation to the shrine approach, the direction the lantern will face, and the spacing between the two lanterns.
In this project, one stone lantern was installed on each side of the approach. The foundations were positioned so that the two completed lanterns would appear properly aligned and balanced.
2. Setting the Lowest Pedestal Stone in Place with a Crane
After inspecting the foundation, the stonemasons begin by setting the lowest pedestal stone in place.
Because a stone component of this size cannot be moved safely by hand alone, it is lifted with a crane mounted on the delivery truck.
Lifting straps are secured around the stone. While the crane lowers it slowly, the stonemasons on the ground control its rotation and guide it into the correct position on the concrete foundation.
Lowering the stone too quickly could damage its edges or cause it to land in the wrong position. The crane operator and the stonemasons therefore work together carefully throughout the process.
3. Preparing the Joints and Stacking the Pedestal Stones
Once the lowest pedestal stone has been positioned correctly, the remaining pedestal stones are stacked one at a time.
The photographs show mortar being applied to the joining surfaces between the stone components. This prepares the surfaces and helps each additional piece sit securely and evenly.
After each stone is added, the stonemasons check its center position, level, and front-facing direction. Even a small misalignment near the bottom can become much more noticeable as the lantern grows taller, so accuracy at this stage is extremely important.
4. Installing the Shaft with the “Offering of Light” Inscription
After the pedestal has been assembled, the central shaft of the stone lantern is installed.
The front of the shaft bears an inscription meaning “Offering of Light,” known as kento in Japanese. It expresses the lantern’s purpose of presenting light as a devotional offering at the shrine.

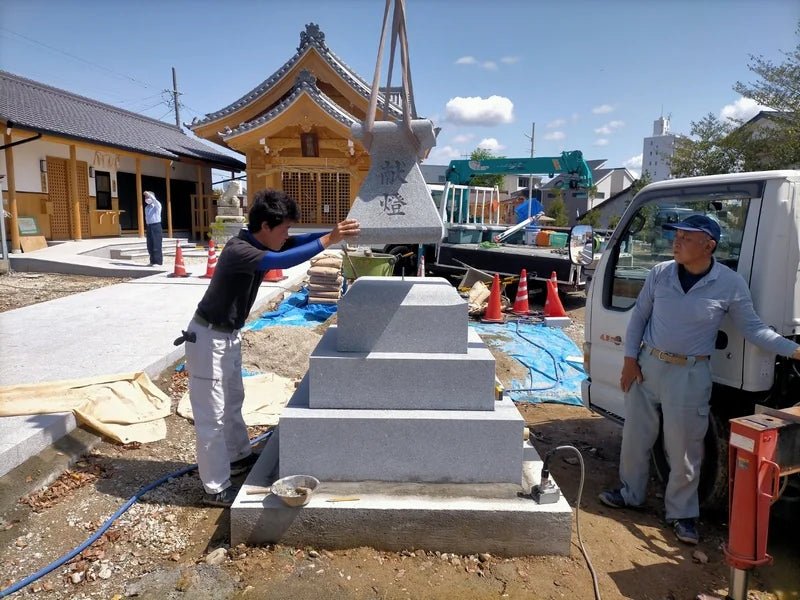

The direction of the shaft must be adjusted while it is suspended so that the inscription faces the shrine approach correctly. The stonemasons guide the hanging stone by hand and slowly lower it into the center of the pedestal.
The shaft strongly affects the appearance of the completed lantern. Its direction, vertical alignment, and center position must all be checked carefully.
5. Installing the Middle Platform, Fire Box, and Roof
The middle platform, fire box, and roof are installed above the shaft.
The fire box is the section through which the lantern’s light can be seen. This Shinzen-type stone lantern has a square fire box and a large roof with strongly upturned corners.
Because the roof is both wide and heavy, even a small shift away from the center could make the entire lantern appear unbalanced. The stonemasons inspect it from the front, the side, and from a distance to ensure that the shaft, fire box, and roof are vertically aligned.
6. Attaching the Decorative Finial
After the roof has been installed, the decorative finial is attached to the top of the stone lantern.
The finial is also lifted by crane. A stonemason standing on a ladder guides it into position. Because this work is performed high above the ground, the stone must be lowered slowly while its movement is carefully controlled.
Once the finial is in place, the stonemasons check that it is correctly centered on the roof.
7. Adjusting the Fire Box and Stone Joints
The installation is not finished immediately after all of the stone components have been stacked.
The stonemasons inspect the fire box openings and the joints between the individual components. They recheck the center position, level, spacing, and front-facing direction, making small adjustments where necessary.
A large stone lantern must look properly balanced not only from nearby, but also when viewed from the shrine entrance and from the main shrine building. The stonemasons inspect the lantern from several directions and adjust it until the entire structure appears straight and balanced.
8. Completing the Pair of Shinzen-Type Stone Lanterns
After the stonework company completed the assembly and final adjustments, a pair of large Shinzen-type stone lanterns stood on both sides of the shrine approach.
When a matching pair of stone lanterns is installed, the height and direction of each lantern must be considered together with the overall view of the approach and the shrine buildings.
From the front, the two lanterns frame the approach, with the main shrine building visible beyond them.
The large Shinzen-type stone lanterns strengthen the visual axis of the approach and create a formal, dignified entrance to the shrine.
The Completed Large Shinzen-Type Stone Lantern
The completed stone lantern consists of multiple pedestal stones, a square shaft, a middle platform, a fire box, a large roof with upturned corners, and a decorative finial.
The inscription on the front of the shaft means “Offering of Light” and expresses the lantern’s devotional purpose at the shrine.
Creating and installing a large stone lantern requires more than stone-carving skill. It also requires professional knowledge of lifting heavy components, placing them accurately, checking their level, and aligning the entire structure.
Although this careful work is not visible once the lantern is complete, every stage depends on the precision and experience of professional Japanese stonemasons.
Important Considerations When Installing a Large Stone Lantern
Safely installing a large stone lantern requires advance planning for more than the lantern itself. The ground conditions, concrete foundation, crane, lifting equipment, and available working space must all be evaluated before installation begins.
Two of the most important requirements are a foundation capable of supporting the lantern’s weight and an installation team with experience handling heavy stonework.
When a large Japanese stone lantern is installed overseas, it is normally shipped as several separate components and assembled from the bottom upward at its final location.
The installation should be completed by a qualified local contractor who can handle heavy stone components and comply with all applicable local building and safety requirements.
With a suitable foundation and professional installation, a Japanese stone lantern can become a long-lasting feature in a shrine, temple, Japanese garden, cultural facility, or landscape project.
